Introduction

Product Introduction

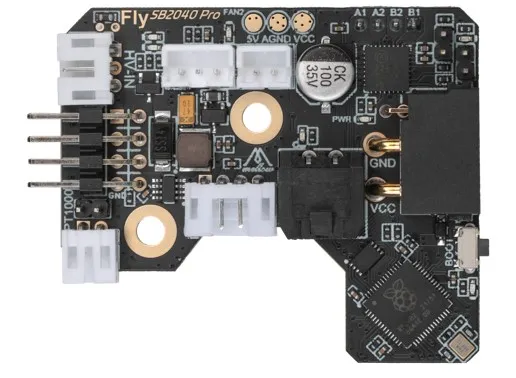

The FLY SB2040 PRO is a tool board developed by Guangzhou Magnesium Electronics Technology Co., Ltd. for the VORON Stealthburner print head. Using this tool board, four wires can replace the complex wiring between the original motherboard and the print head, optimizing the layout. The SB2040 is suitable for stealthburner and afterburner. It integrates a CAN transceiver, USB port, TMC2240 driver, ADXL345 accelerometer sensor, three controllable fans, and other functions. This tool board is compatible with Klipper and RRF firmware.

Product Features

• Reserved Boot button, allowing users to enter Boot mode via Type-C to update firmware
• Supports Klipper firmware
• Temperature sensor support: Onboard MAX31865 chip, compatible with PT100
• Onboard ADXL345 accelerometer sensor
• Reserved RGB interface, onboard 2240 driver, supports various leveling sensors such as klicky, Voron Tap, PL08n, etc.
• Supports 12-24V voltage, 15A current input, enlarged heating rod port, rated current 10A

Product Parameters

• MCU: Raspberry Pi rp2040, Dual-core ARM Cortex-M0+@133MHz
• Connection interface uses XT30 (2+2) connector supporting 15A current, peak 30A
• Firmware: Klipper
• Input voltage: DC12V-24V
• Logic voltage: DC3.3V
• Onboard sensors: ADXL345 and optional MAX31865
• Heating rod interface: Heating rod (HEAT0)
• Expansion interfaces: Controllable fan3, RGB1, limit3, heating tube1, thermistor*1
• Fan interface: Three controllable fans
• Motor driver: Onboard TMC2240

Product Notes

Output Port	Maximum Current at 24V Power	Maximum Current at 12V Power
Heating Port	5A	2.5A
Fan Port	1A	0.5A
