Host Computer Power Supply

tip

FLY-Pi-V2 has two power supply methods.

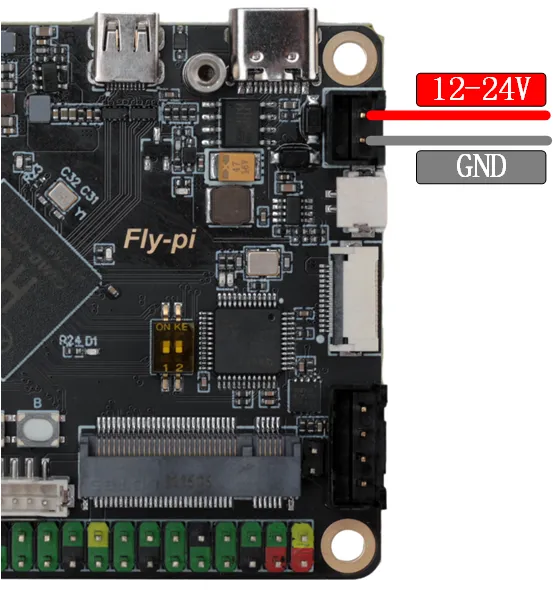

Using 12-24V Power Supply

• The wiring method is shown in the figure below. The interface terminal signal is XH2.54.

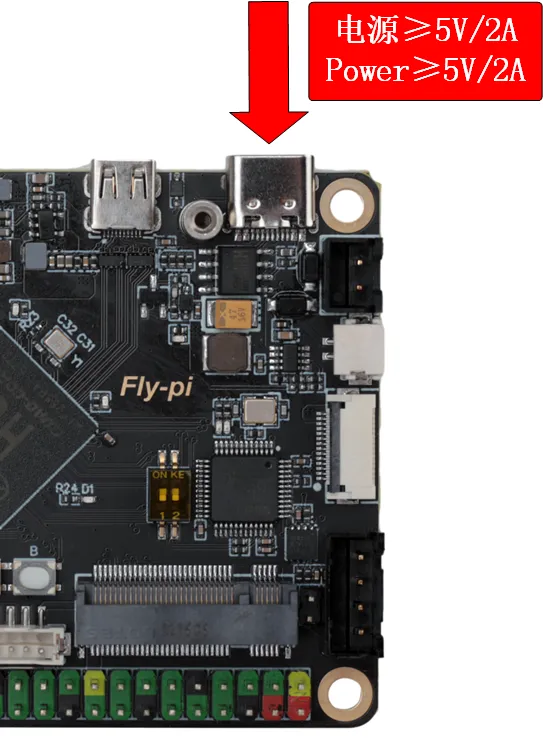

Using Type-C Interface for Power Supply

• Please use a power supply with power ≥ 5V/2A.
