Screen Wiring and Configuration

Screen Wiring

Important Safety Notice

• When connecting TFT or HDMI screens using FPC cables, ensure the device is completely powered off to prevent screen damage.
• When wiring TFT screens, carefully confirm the insertion direction of the FPC cable to avoid reverse connection causing device malfunction.

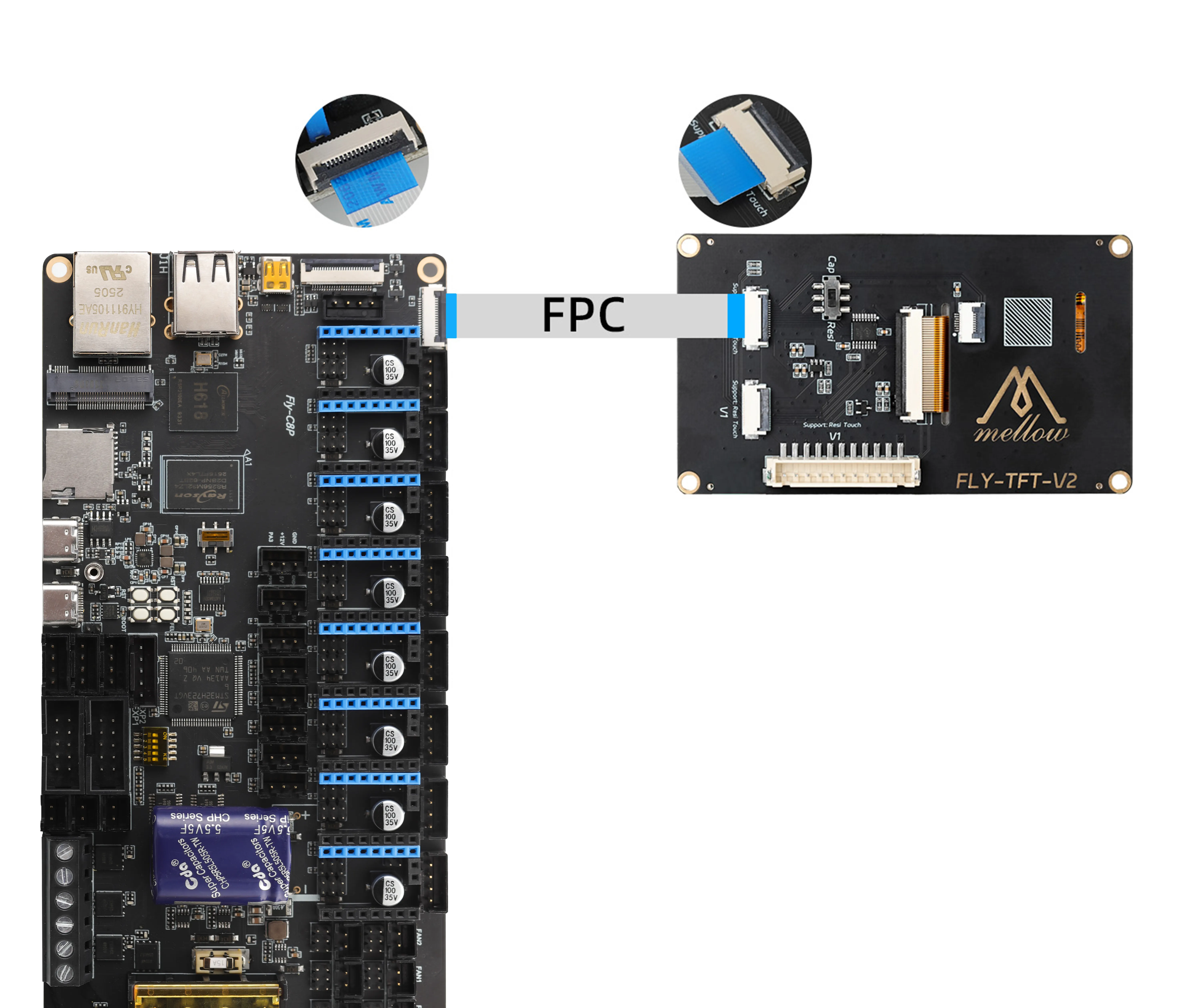

TFT Screen Wiring

TFT Screen Wiring and Configuration

tip

• For resistive touch screens, set the DIP switch to Resi.
• For capacitive touch screens, set the DIP switch to Cap.

HDMI Wiring

HDMI Wiring Methods

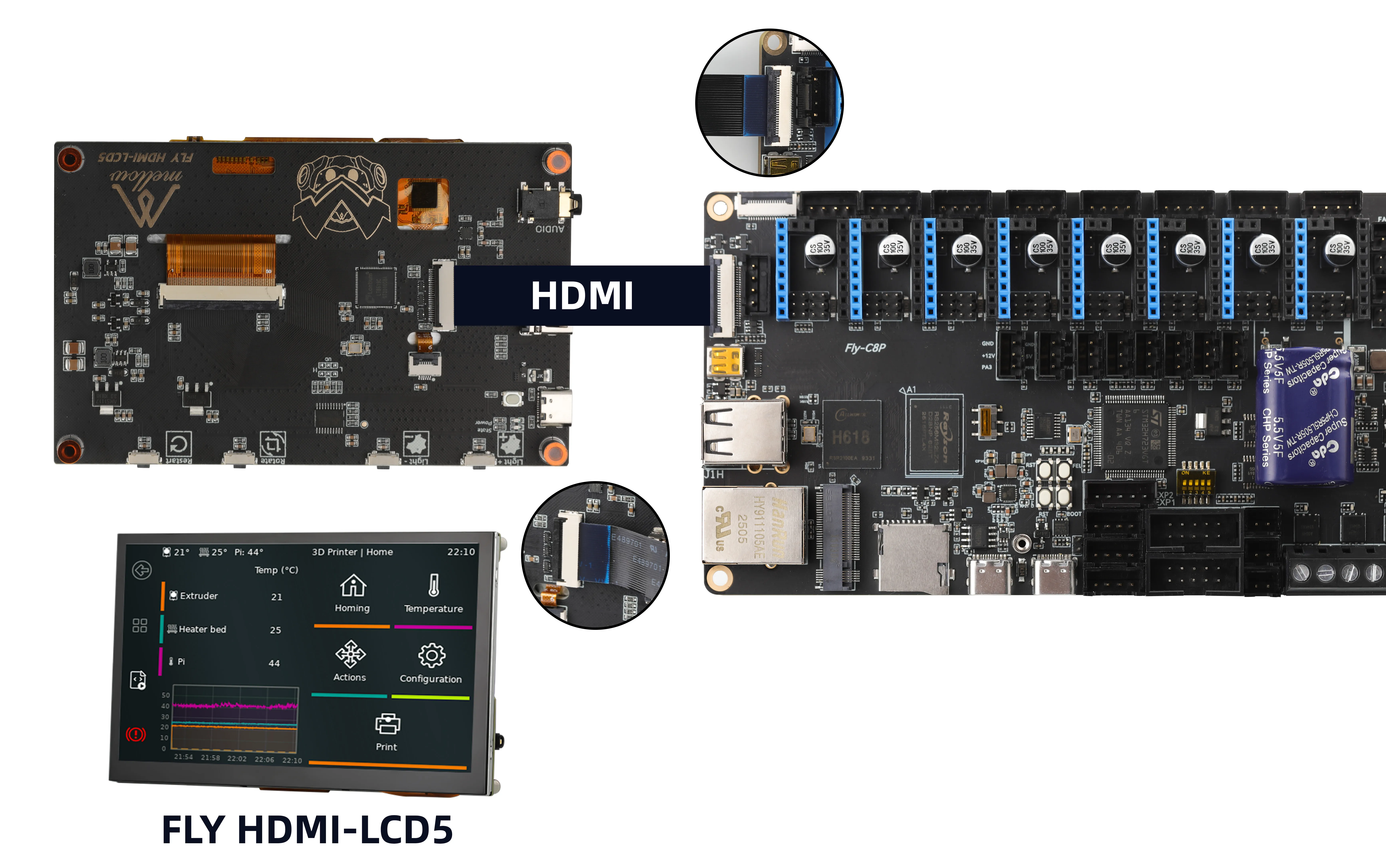

Wiring Method One

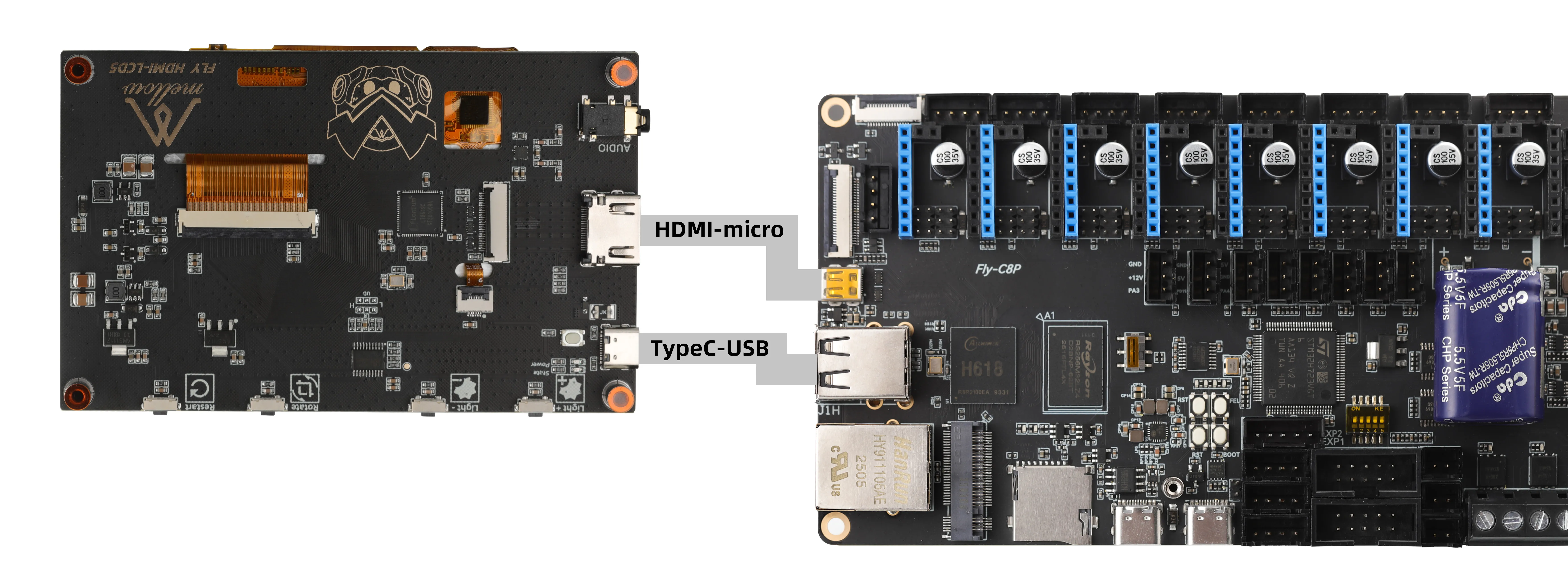

Wiring Method Two

UART Screen Wiring

UART Screen Wiring

Important Notes

Configuration Precautions

• It is recommended to use the mainsail or fluidd web interface for configuration changes.
• Do not enable webpage translation, as it may prevent the system from starting normally.
• Do not input Chinese characters or special symbols in configuration files.
• A system restart is required for configuration file changes to take effect.

Critical Warning

• Do not modify any content below the line ######### PLEASE DO NOT EDIT THE FOLLOWING ######### in the configuration file.

Configuration File Modification Methods

Modifying Configuration After Flashing

• For configuration items that only take effect on the first boot, you must modify the config.txt file located in the removable disk FlyOS-Conf using a professional text editor after the flashing process is complete.

Online Configuration Modification After System Boot

• Common configuration items can be modified on the system's web configuration page and will take effect after a restart.

1. Access the device's IP address via a browser, e.g., http://192.168.1.2/

fluidd Interface Operation: Uncheck "Filter hidden files and folders"

mainsail Interface Operation: Check "Show hidden files"

2. Navigate to the displayed .flyos-config folder and locate the sys-config.conf configuration file.

3. Edit the sys-config.conf file. This file is a symbolic link to the config.txt file in the removable disk FlyOS-Conf.

4. After modifying the configuration items, save the file and restart the system for the changes to take effect.

Configuration Format Note

• The configuration file must follow the format key=value. Do not change it to key: value or any other format.
• Do not add spaces before or after the equals sign.

Screen Configuration

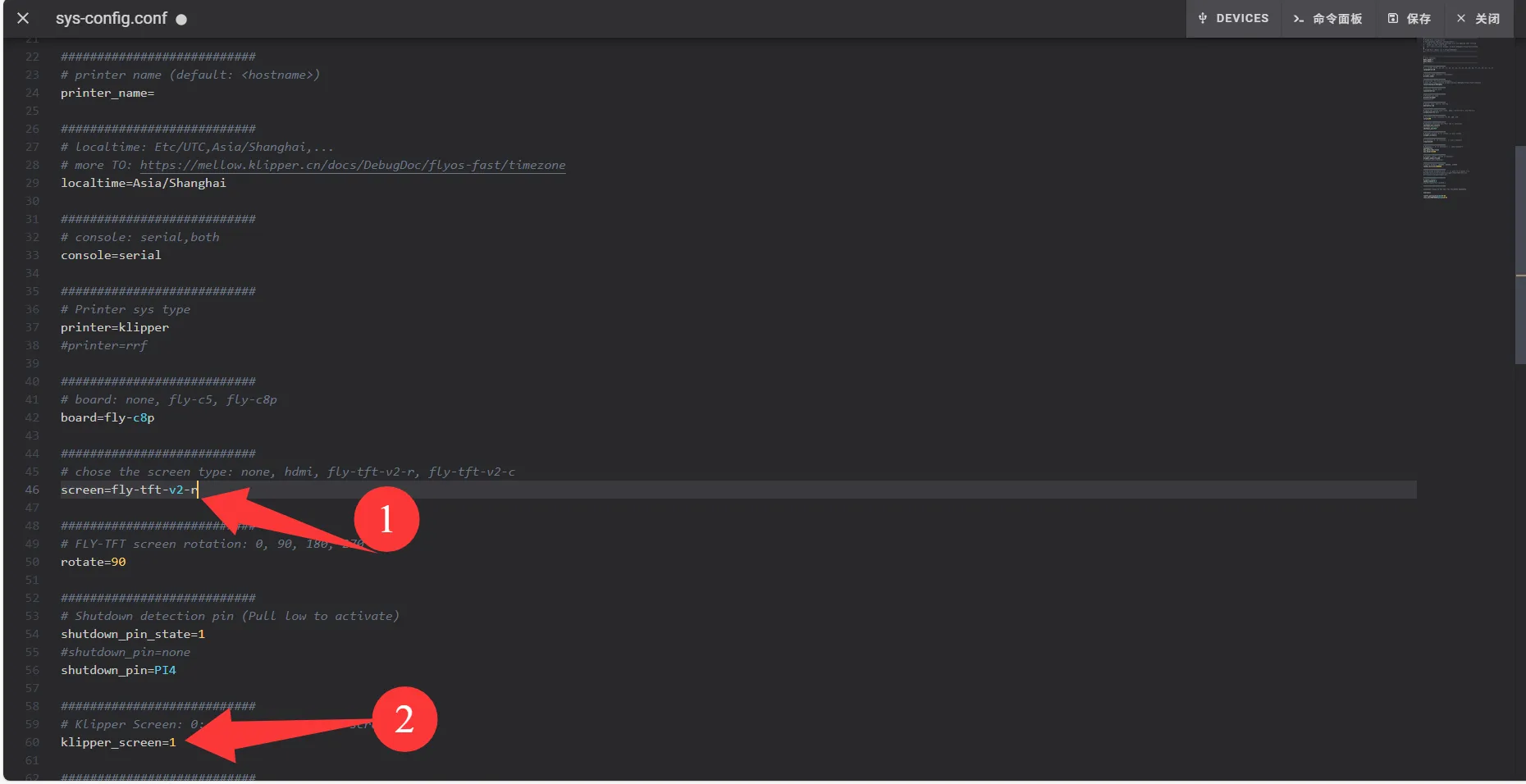

TFT Resistive Screen Configuration

• Change the value after screen= to fly-tft-v2-r.
• Change klipper_screen=0 to klipper_screen=1.
• Below is a reference after the modifications:

screen=fly-tft-v2-r

• Also modify:

klipper_screen=1

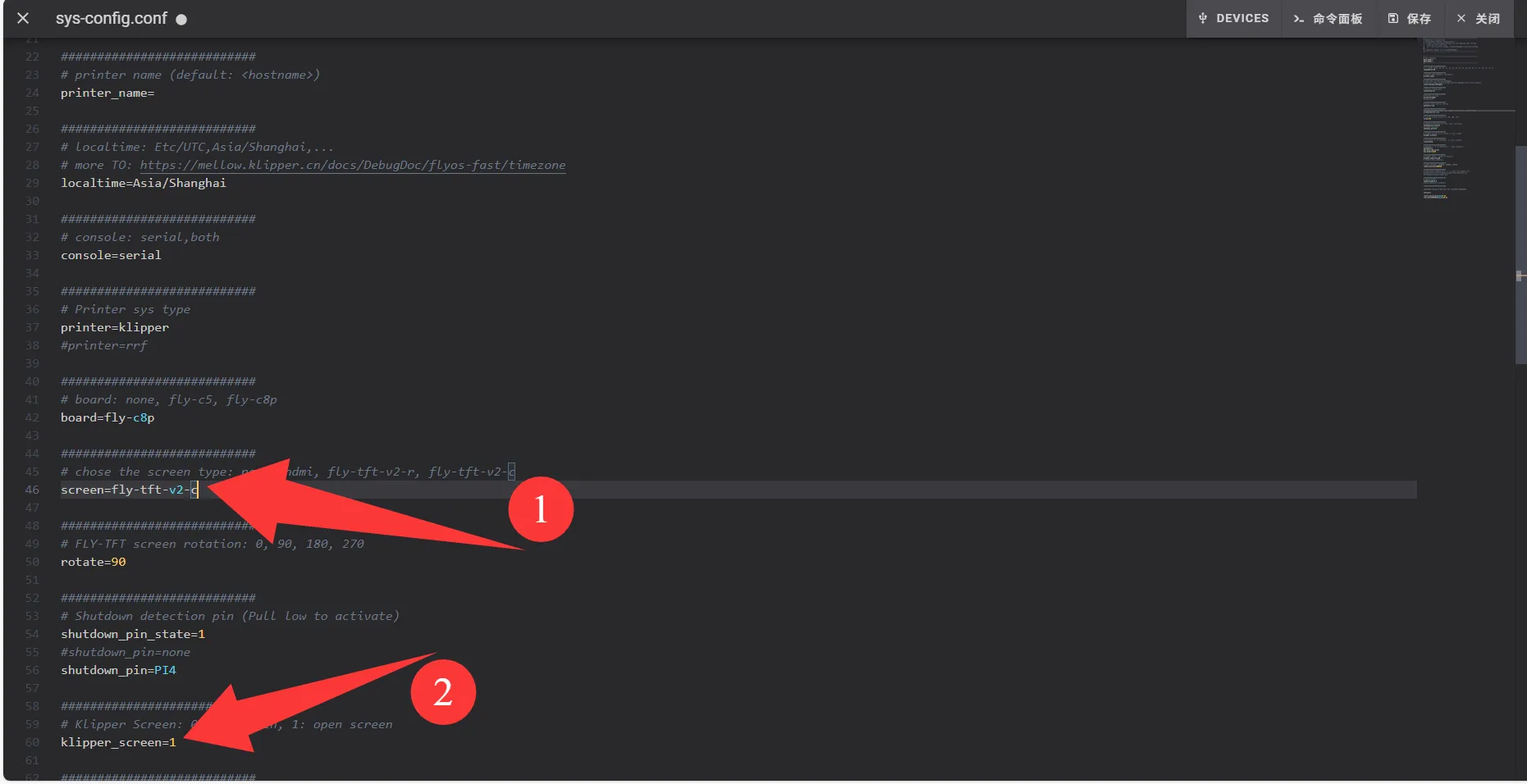

TFT Capacitive Screen Configuration

• Change the value after screen= to fly-tft-v2-c.
• Change klipper_screen=0 to klipper_screen=1.
• Below is a reference after the modifications:

screen=fly-tft-v2-c

• Also modify:

klipper_screen=1

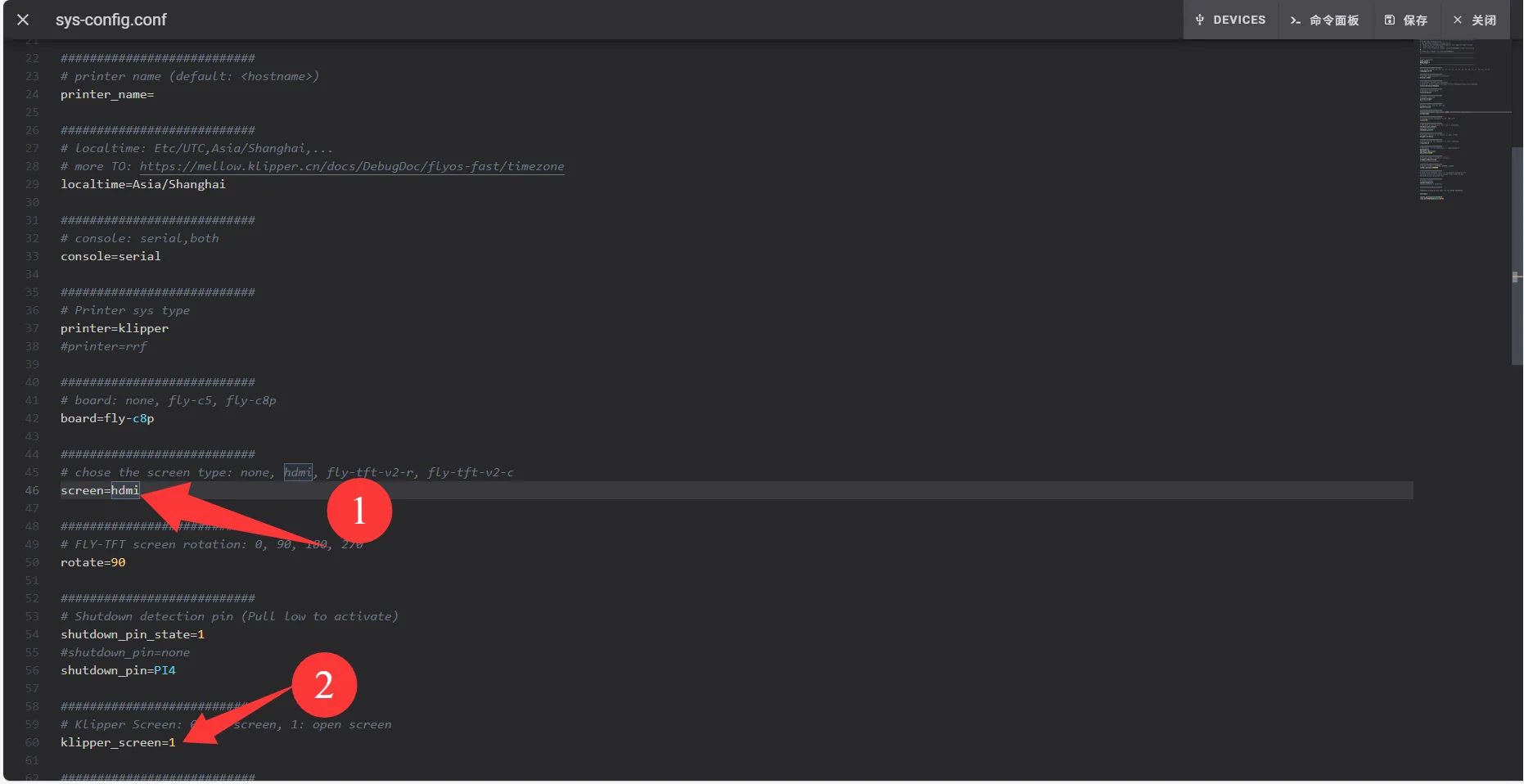

HDMI Screen Configuration

• Change the value after screen= to hdmi.
• Change klipper_screen=0 to klipper_screen=1.
• Below is a reference after the modifications:

screen=hdmi

• Also modify:

klipper_screen=1

UART Screen Configuration

• Change the 0 after moon2uart to 1.
• Change klipper_screen=1 to klipper_screen=0.
• Below is a reference after the modifications:

moon2uart=1
